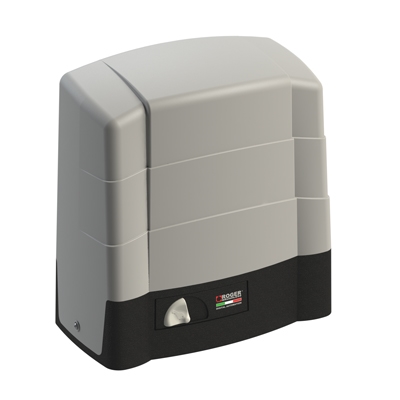

BG30
Industrial Sliding Gate Operator
- Main Power: 115 VAC
- Frequency of use: 100%
- Motor thermal protection: 150°C
- Operating temperature: -20+55°C
- Maximum dimension product in mm: L346x W180x H362
- Encoder: Optical
- Limit switch: Mechanical
- Onboard control unit: B70/1DCHP
- Reductor Type: Irreversible
| MODEL | BG30/1003/HS | BG30/1803/HS | BG30/2203 |
Gate weight Capacity | 1000 Kg | 1,800 Kg | 2,200 Kg |
| Speed | 1.10 f/s | 1 f/s | 0.6 f/s |
